MachPro Jogging Increments & Pendant Info

MachLabs - Logo & Text.png

Adjusting Pendant Acceleration

To access the pendant acceleration settings:

  • Disable MachPro
  • Pull down Configure -> Control
  • Select the Settings tab
  • Collapse the settings tree  image.png
  • Expand the Jogging section.

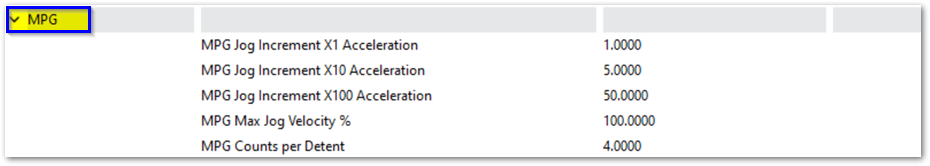

In the MPG section, you can enter values between 1-100. You should test the jogging with the pendant to make sure that it is jogging smoothly on all increments.


Adjusting Jog Increments

To access the pendant jog increment settings:

  • Disable MachPro
  • Pull down Configure -> Control
  • Select the General tab

The pendant has three jog increment positions: X100, X10 and X1. The distance the machine will jog at each setting is determined by the values in the bottom 3 fields in both the inches and metric sections.

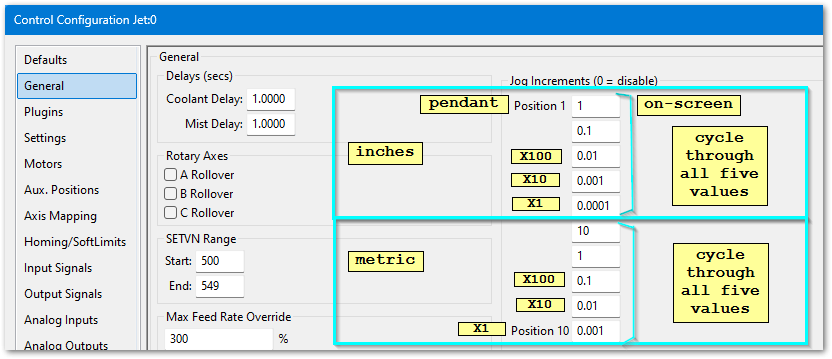

This screen sets the values for all jogging increments: inches and metric, pendant and on-screen



Using the values in this example:

  • If the machine is running in inches and the pendant is set at X10, then each click of the handwheel will move the machine 0.001 inches.
  • If the machine is using metric and the pendant is set at X10, then each click of the handwheel will move the machine 0.01 mm.

If a position has a 0 then it will not be cycled through the jog increments for on-screen jogging.



On some systems, X100 is too fast and only X10 and X1 are needed. In that case set the X100 and X10 values the same 0.001 (inches) or 0.01 (metric).


To use the different jog increments with on-screen jogging:

  • Click the Step button
  • Click the INC (increment) button to select the jog distance to use per axis click
  • The INC button will cycle through all five of the increment values
  • Click the appropriate axes buttons to jog your system




Note: The pendant will send pulses to the control, and all those pulses will be completed - even if it takes several more seconds. It appears to be coasting, but it is really completing the motion you commanded.

This is more visible on an axis with a low velocity.

X100 is most likely to be a problem. Set it to the same value as X10 to reduce the speed that the pendant sends pulses.

Rotary Increments

  • Disable MachPro
  • Pull down Configure -> Control
  • Select the Settings tab
  • Collapse the settings tree  image.png
  • Expand the Jogging section.

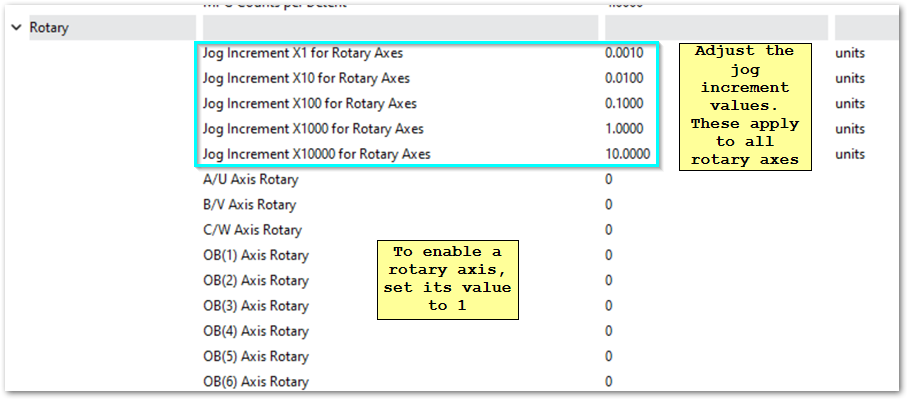

  • Work in the Rotary sub-section


Reverse MPG Pendant Direction

  • Wired Pendant:
    • In the User Interface tab of the MachPro Plugin, select the wired pendant in the list of active controllers, then set the Invert encoder checkbox (check the box if unchecked, uncheck if checked)
  • Wireless Pendant:
    • To enable the reverse, you need to add a key to the machine.ini file.
    • Under the section for the MPG (eg. [ExternalController#]), add the field:
      ReverseEncoder=1
    • Note: The ExternalController # will depend on the setup location in the plugin list for the user interfaces.
