Geckodrive G540 Drive Wiring
Printable PDF versions of each of these diagrams are available in the upper left area of this browser window, or under the Info tab on a smart phone.
Clicking on an image will open it in a new tab or window and you can zoom in to see details.
M31 Motion Control Setup ManualGeckodrive G540Manufacturer Documentation: Geckodrive G40 |
|

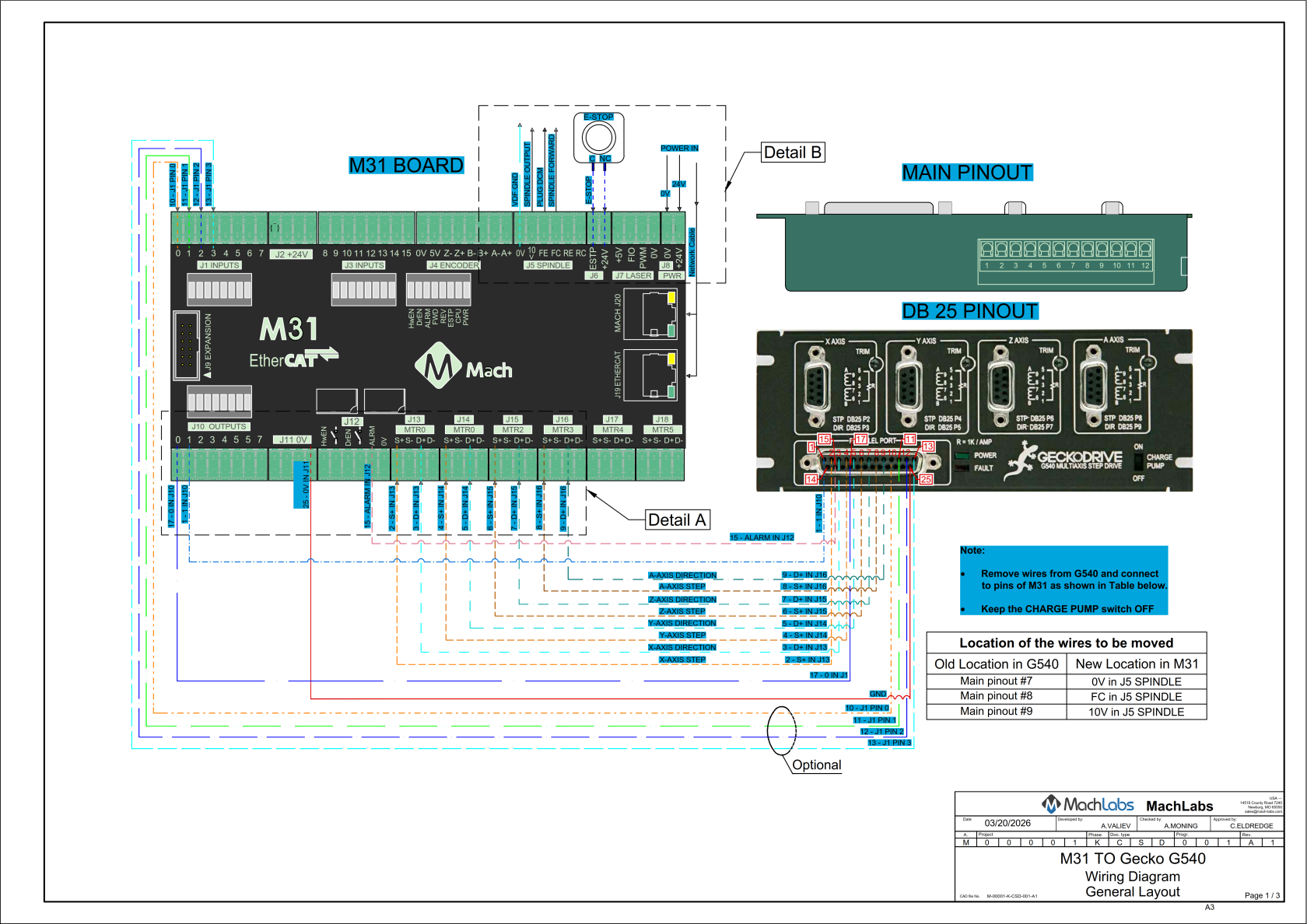

Main Drawing
|
|

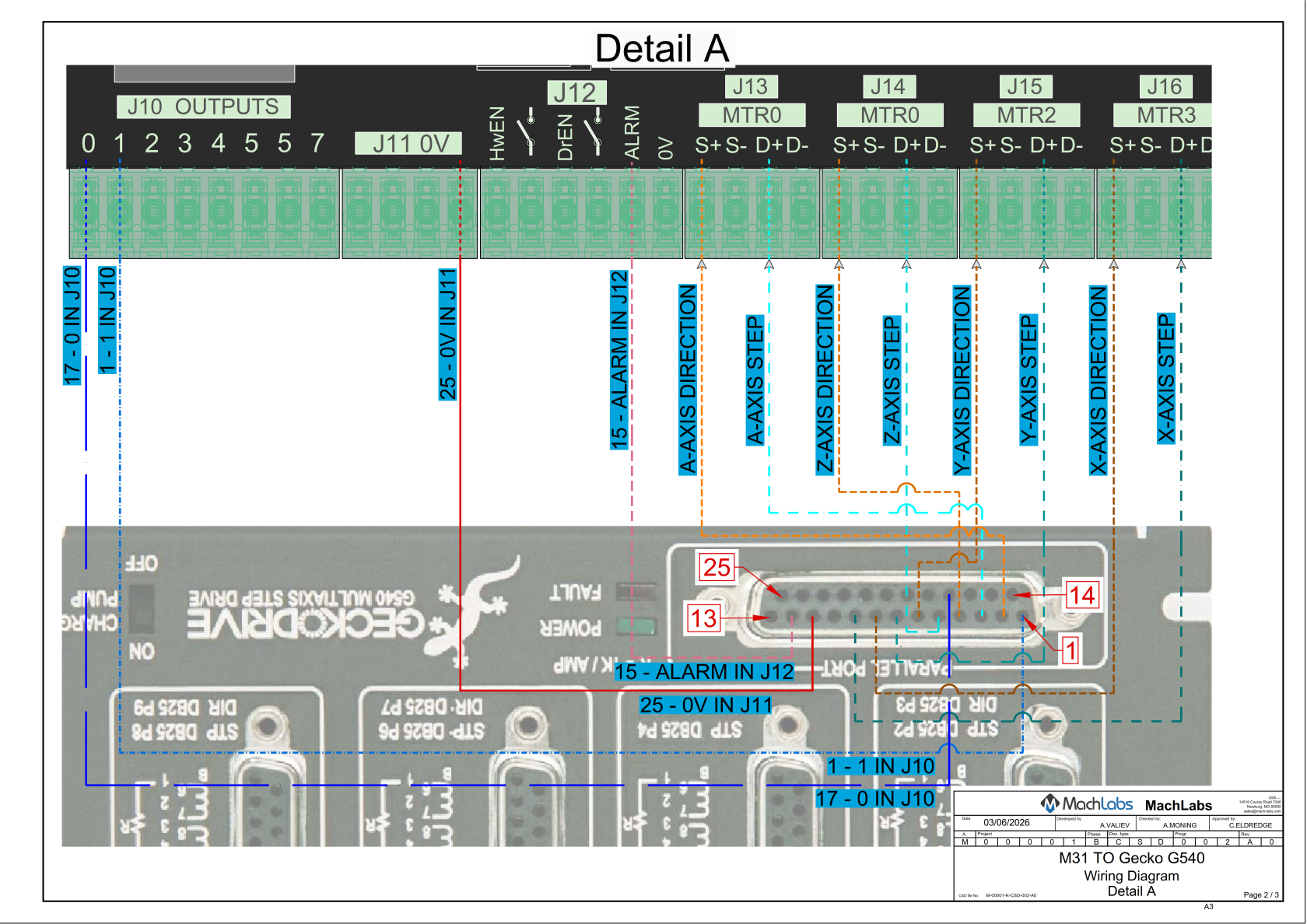

Detail A
|
|

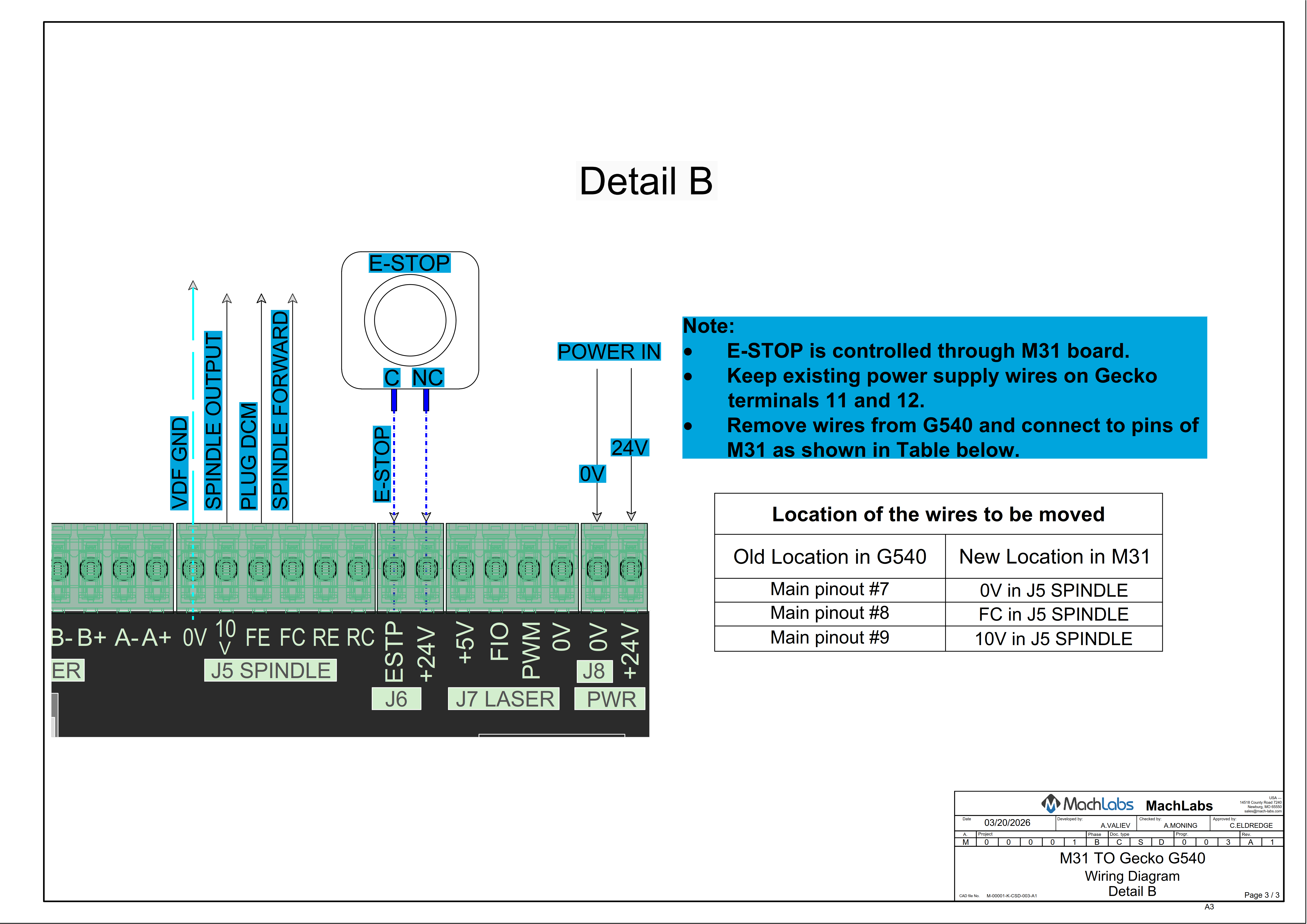

Detail B  |
