260063 Dual Monitor Kit Assembly

How to assemble the Dual Monitor Kit on an HMI!

I have found this is the best order to assemble this kit.

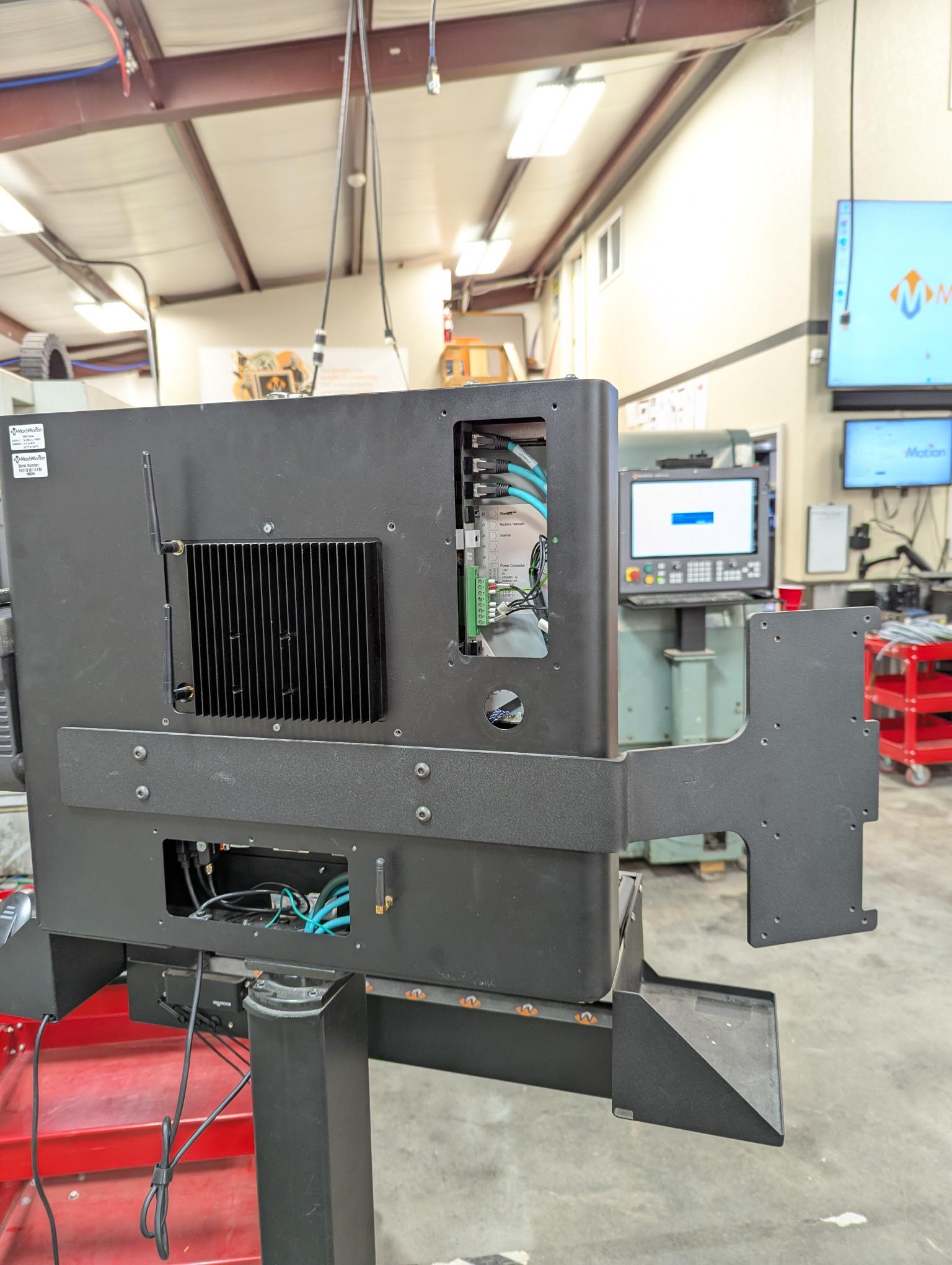

Install the back mount.

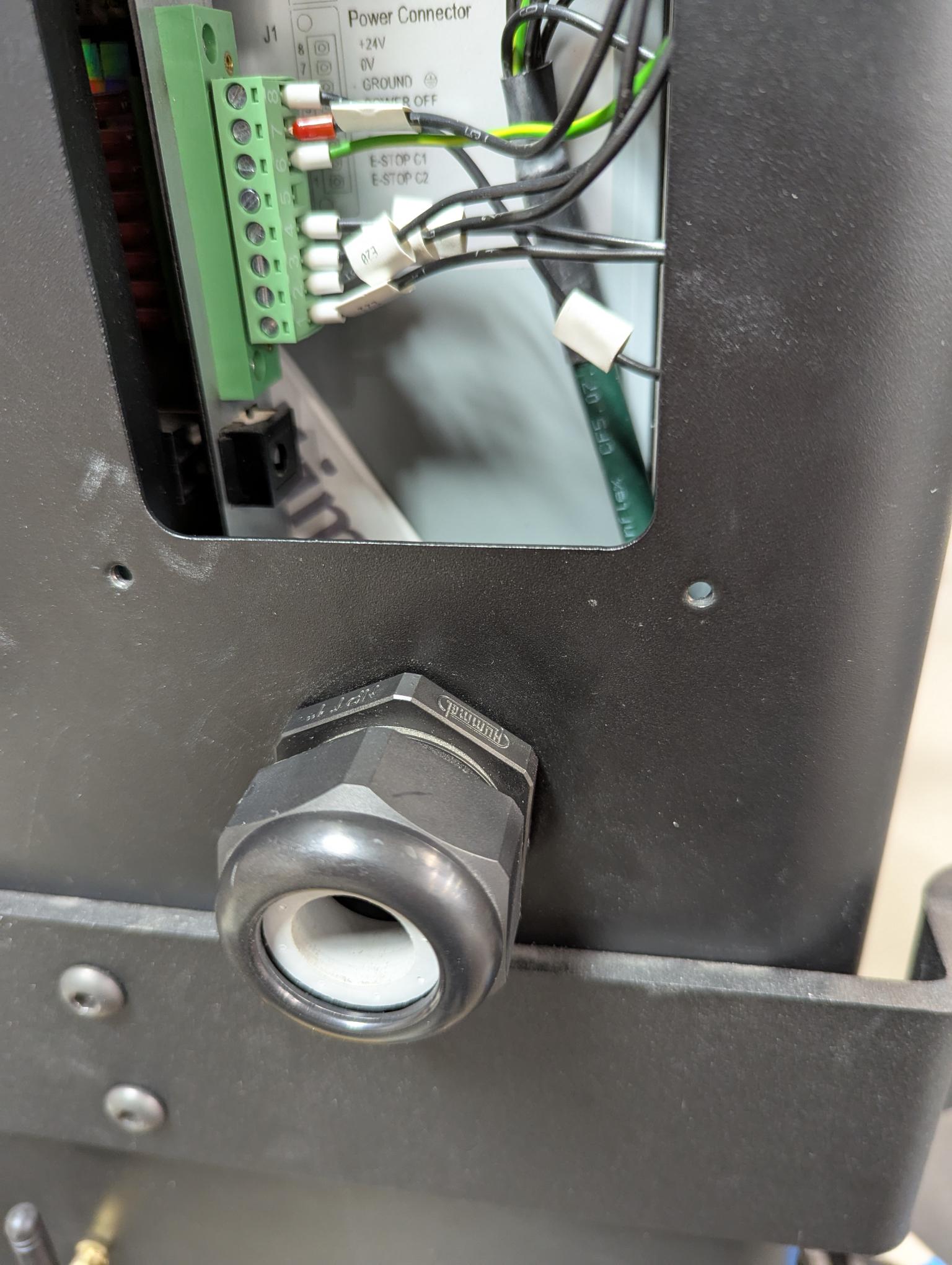

Install the conduit grip (this can be done by hand, hold the inside nut with fingers and tighten with channel locks, if you tighten until the inside nut slips in your fingers, that is tight enough).

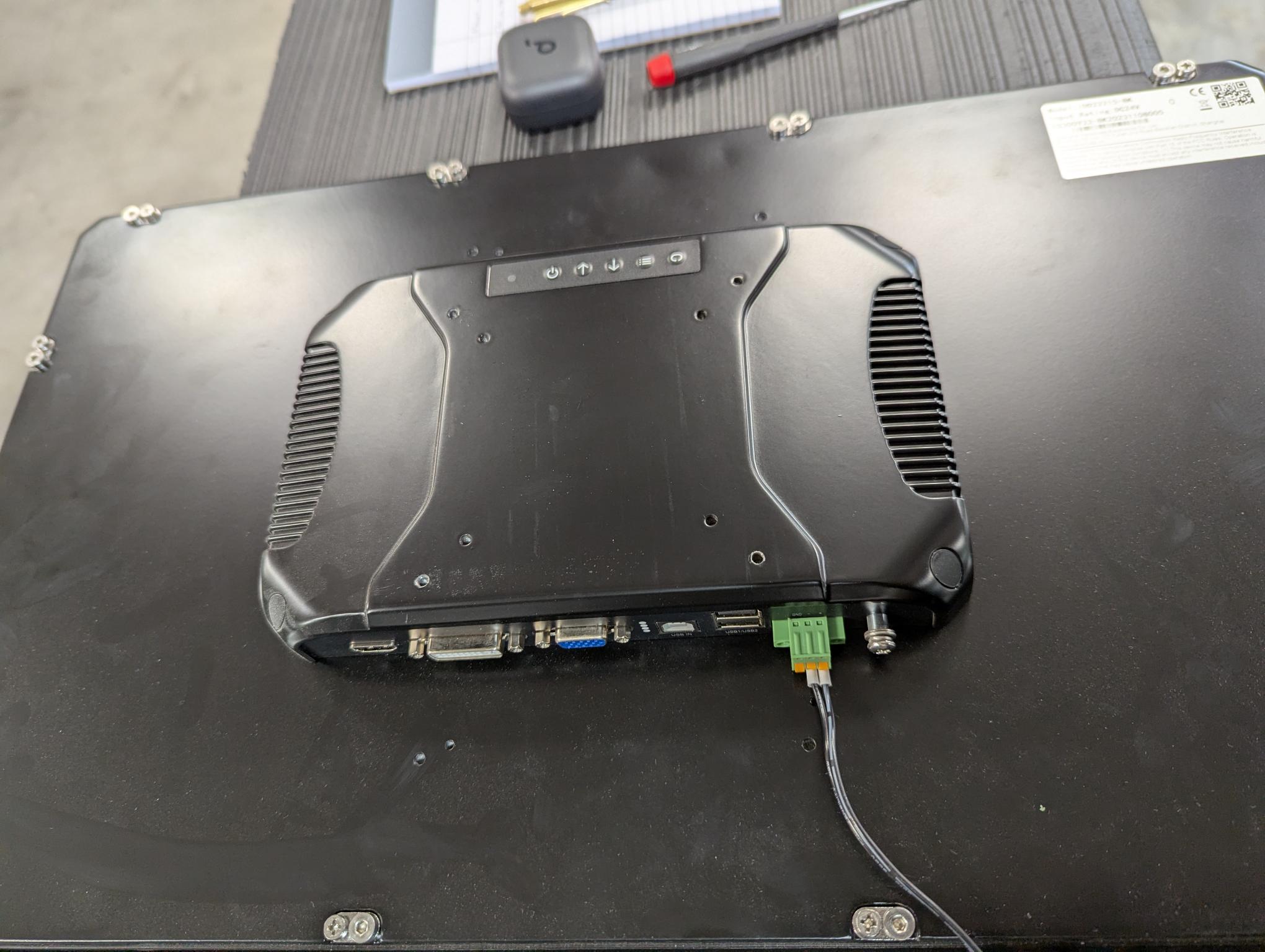

Install the Monitor power cable (it will be covered by the mount when the monitor is installed on the mount if the monitor is mounted on the left side of the control). (For power cable reference, see Plug Orientation link) -->Plug Orientation

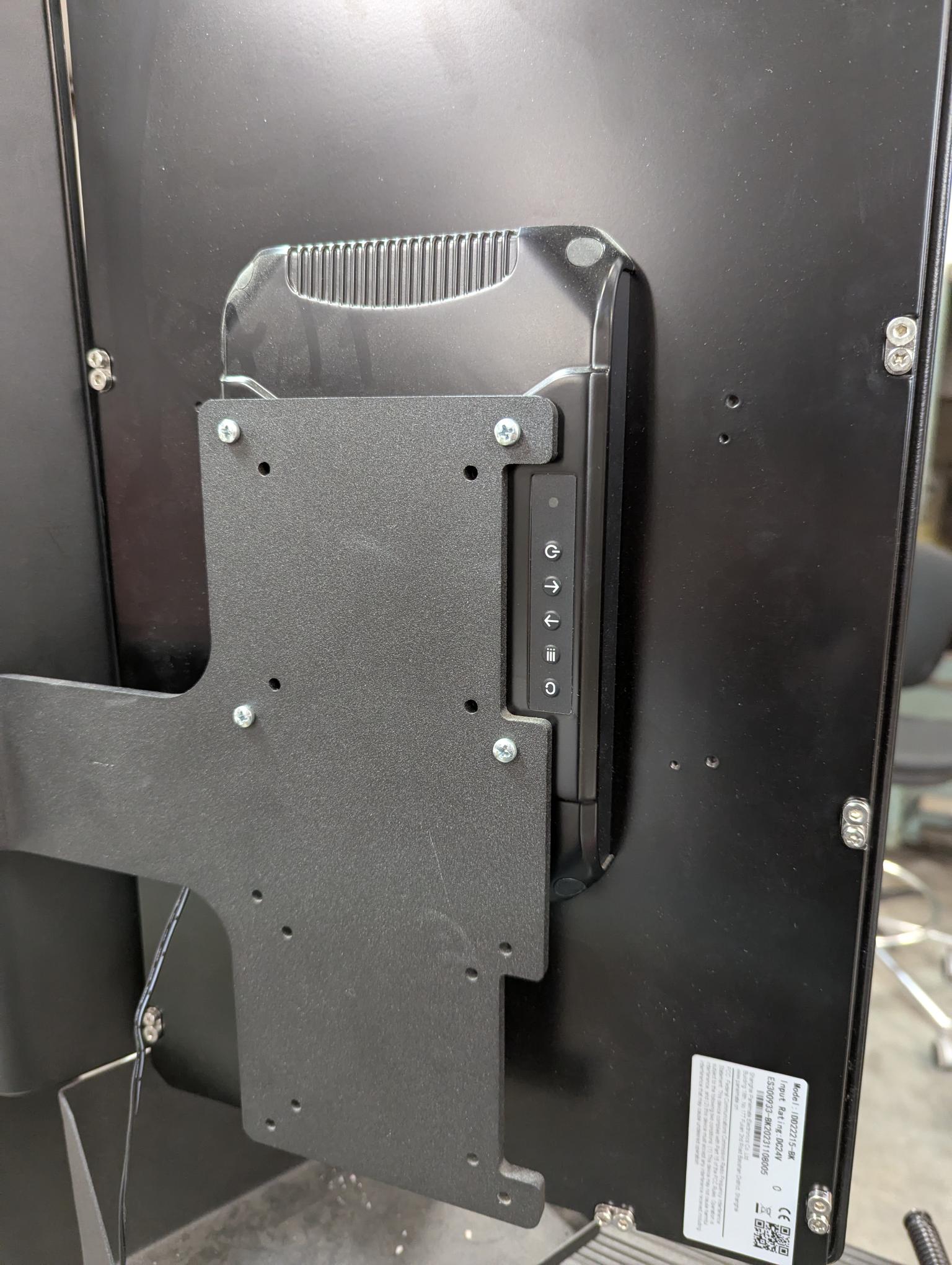

Mount the monitor to the Mount.

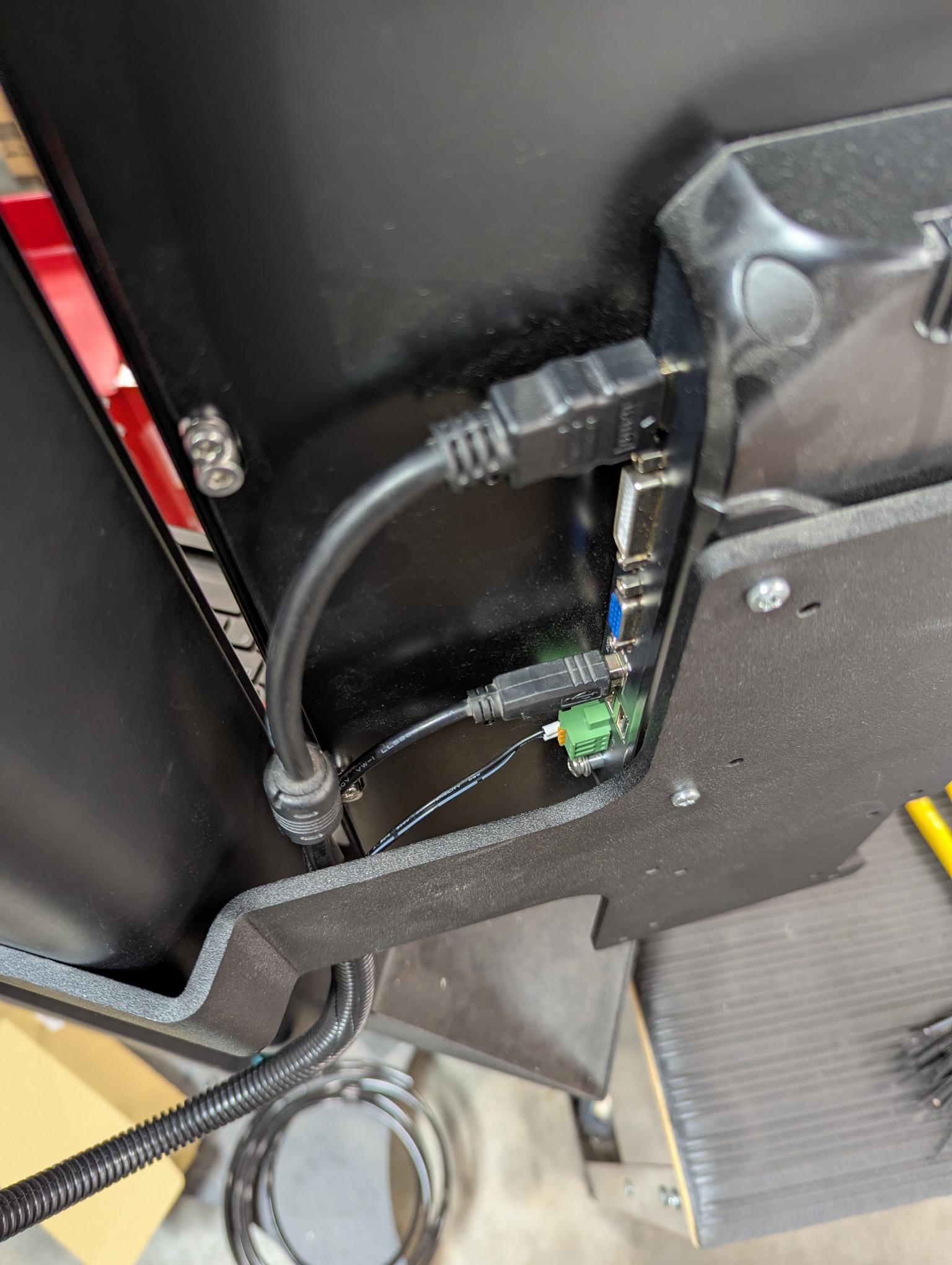

Plug the Cables into the Monitor.

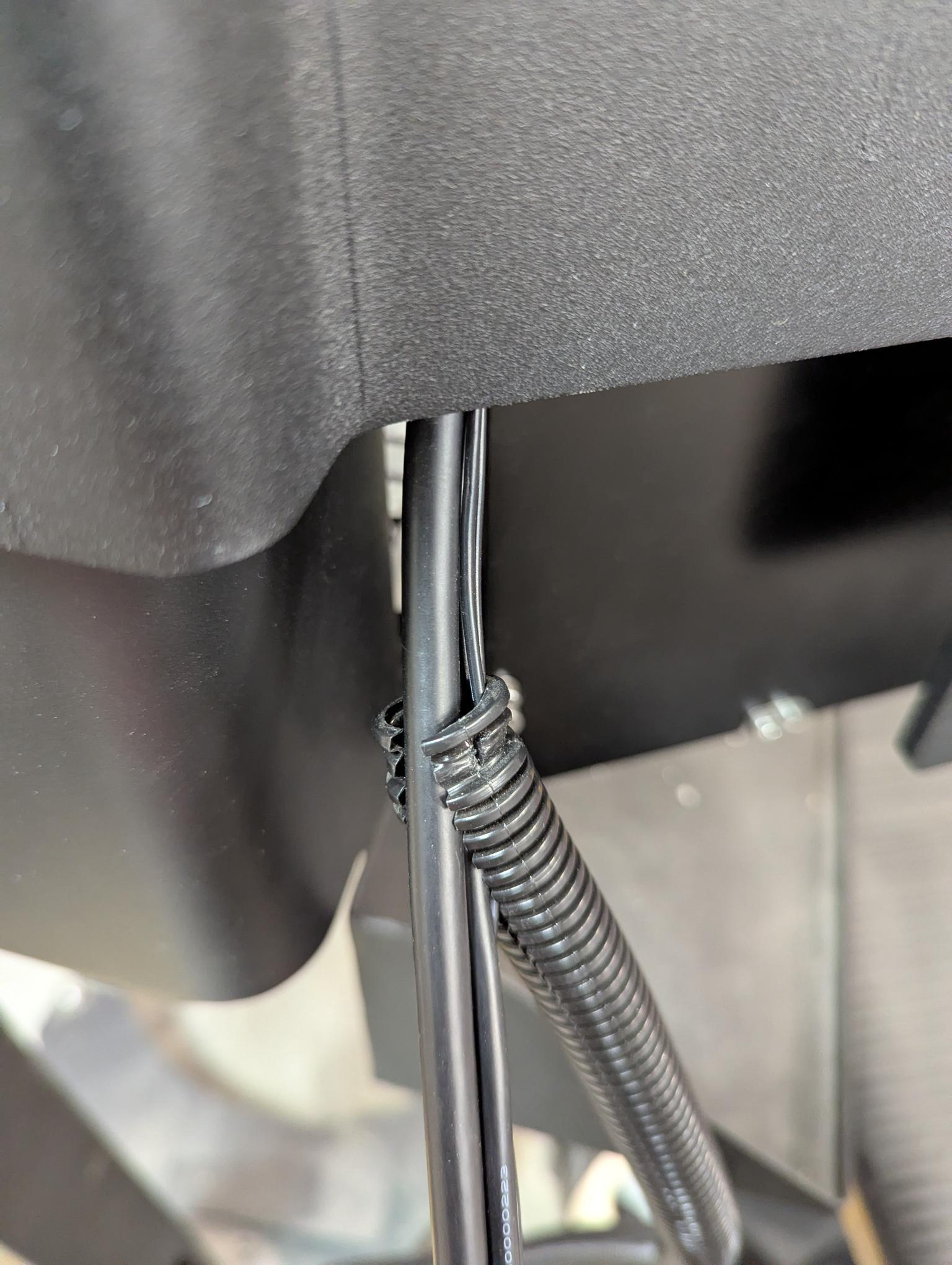

Put the Split Loom on all the cables.

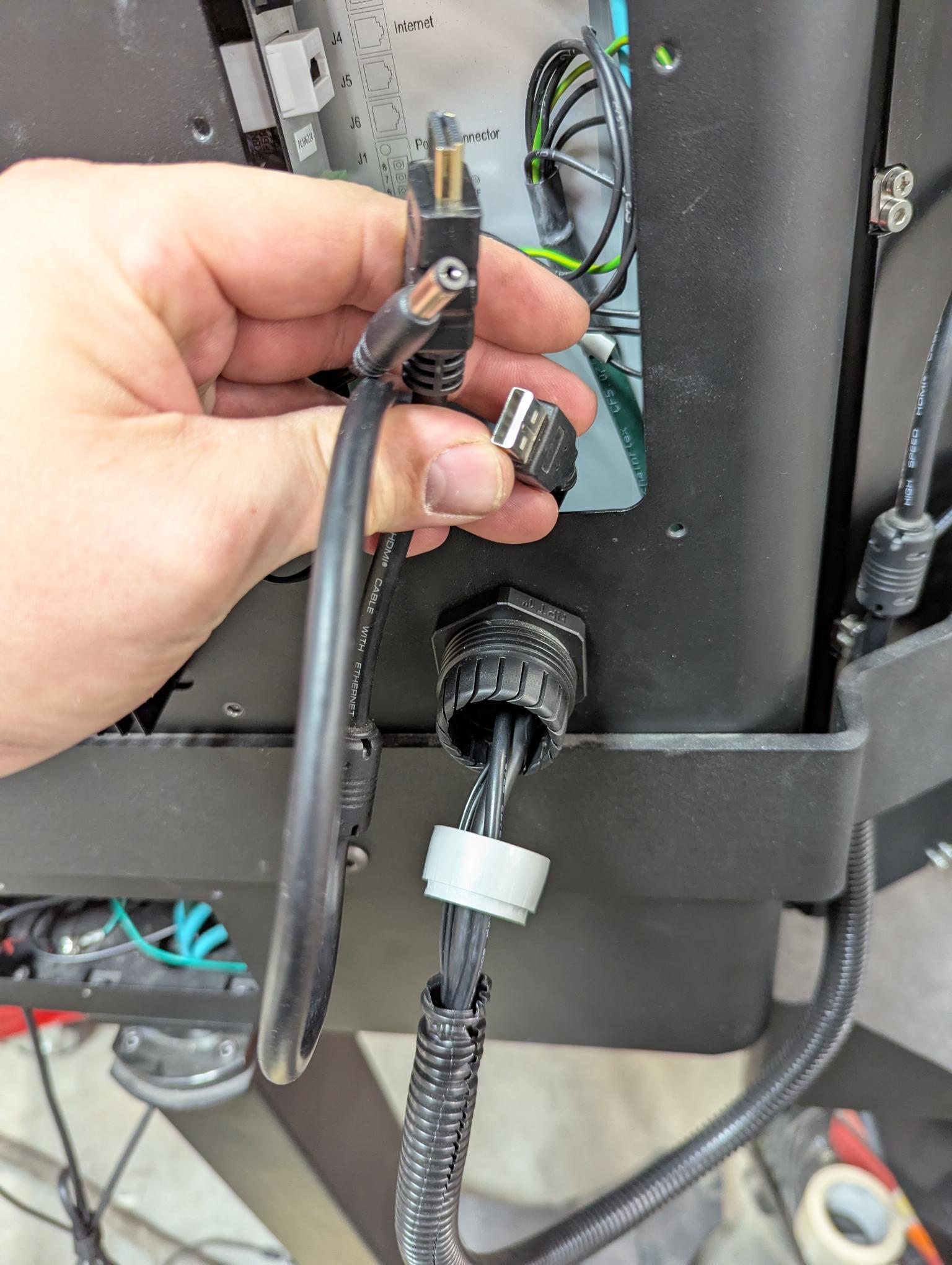

It is easier to remove the compression nut and rubber seal. Slide those on the cables and split loom (in the correct orientation) and then run the cables through the conduit grip. One can manage to get the cables through the grip without the removal, but it can be more challenging.

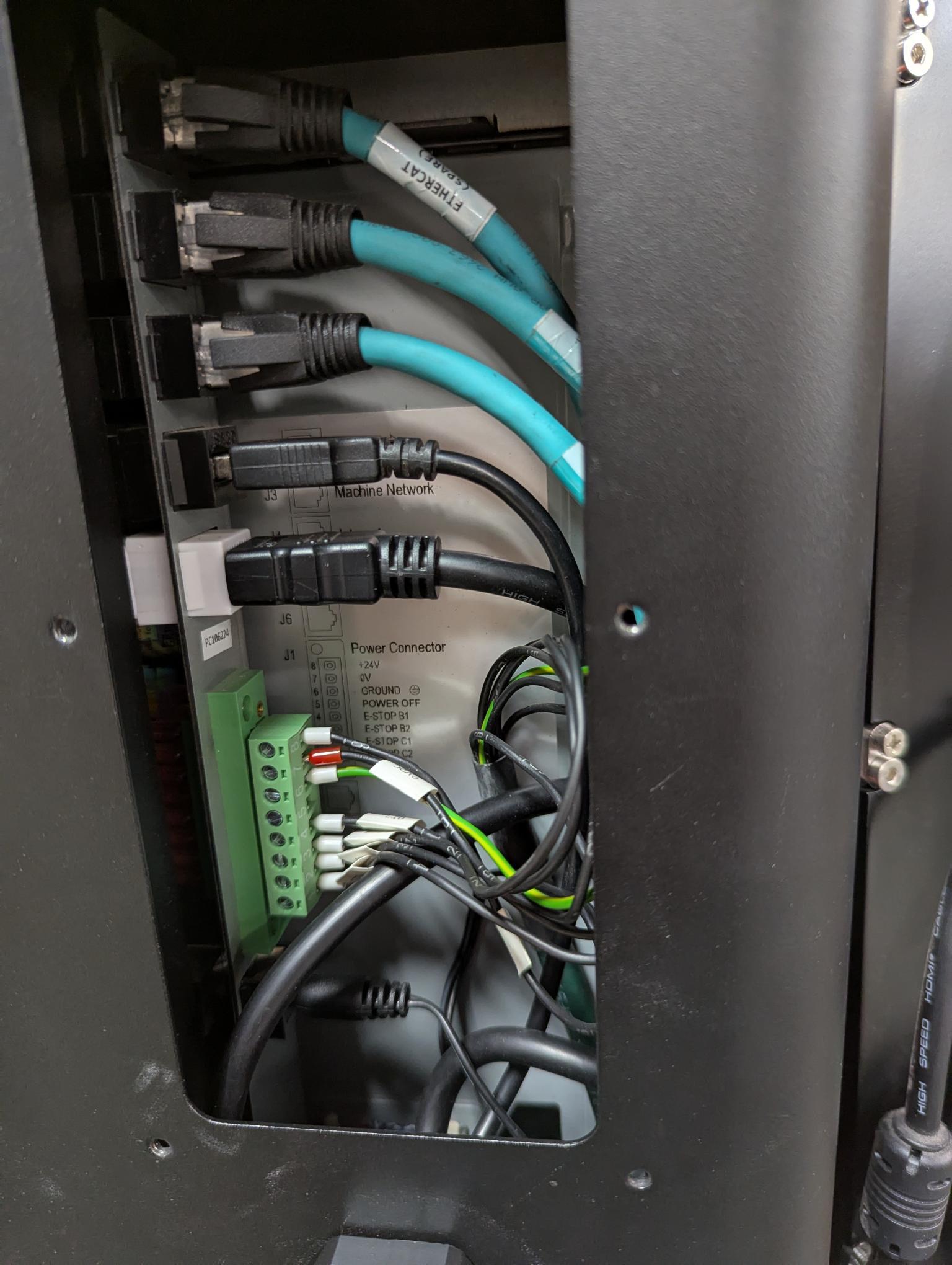

Plug the cables into the correct place and be sure to give of a bend radius so the cables are not strained at the terminal.

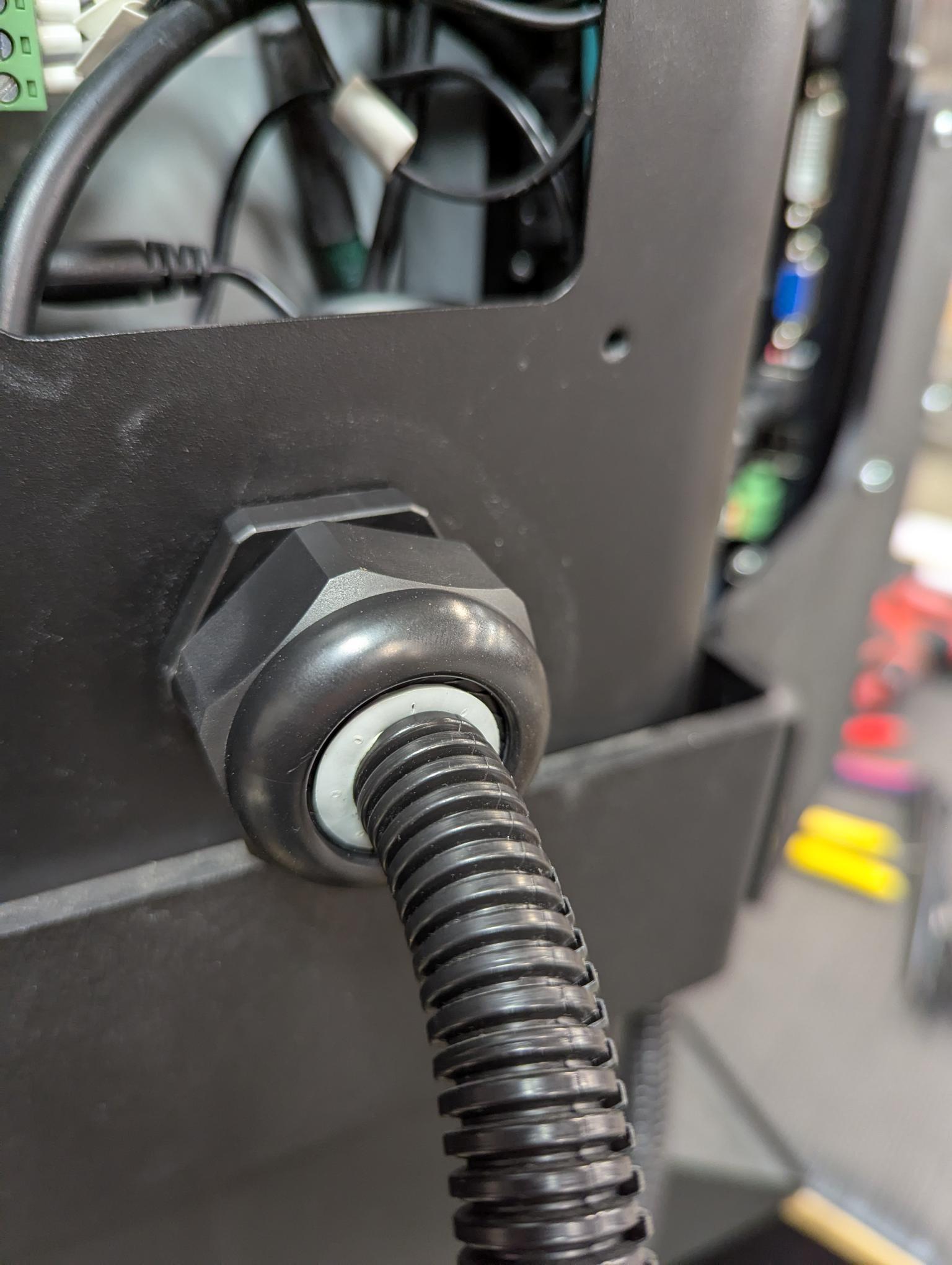

Slide the split loom in and tighten the conduit grip (the rubber seal doesn't have to have its guts spilling out, just tight enough that the loom doesn't pull out is perfect). You can even put a zip tie on the Dual Monitor side of the split loom for added security.

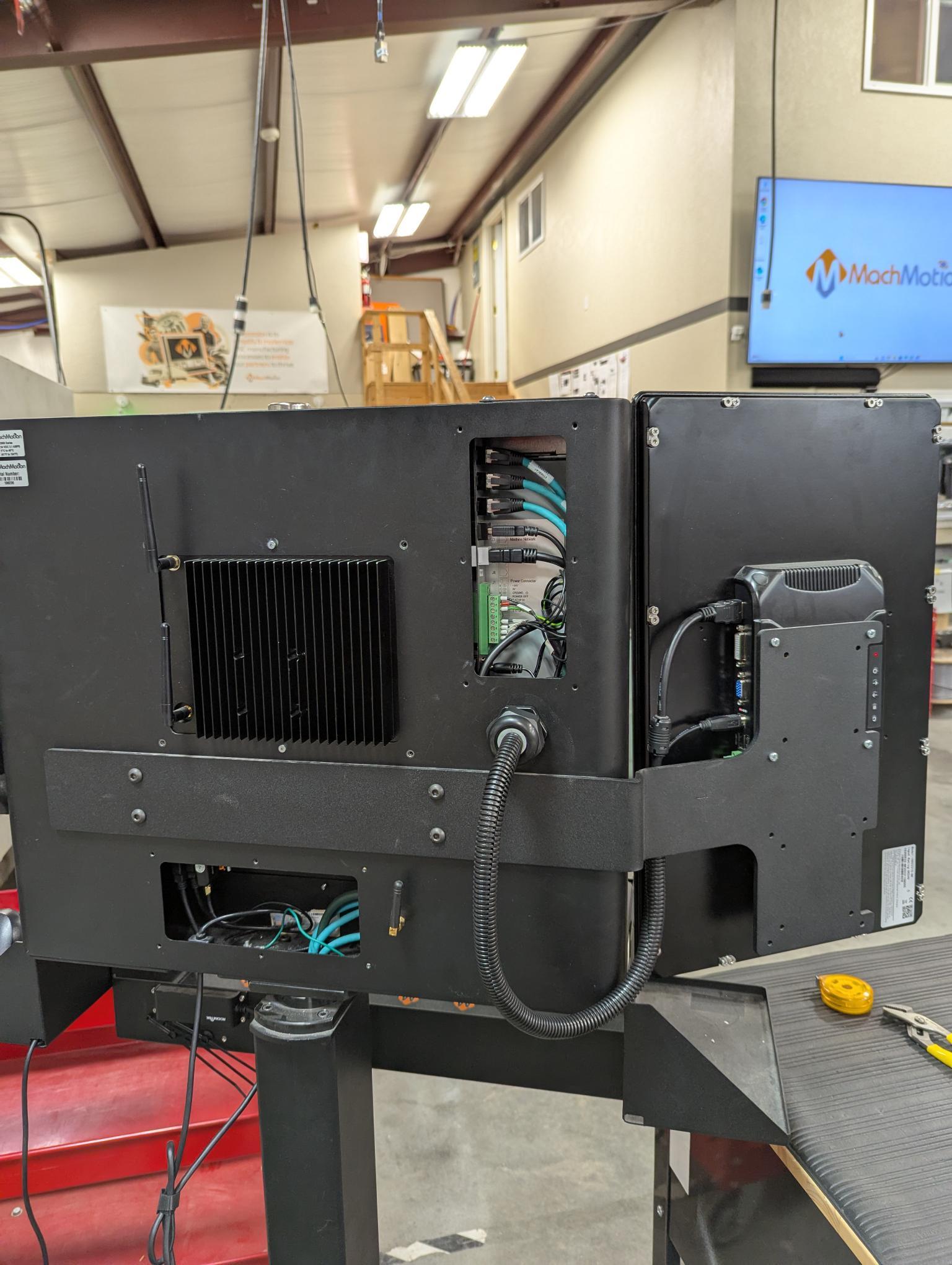

Done!!! It should like this.
