MachPro documentation for accessories available through Mach-Labs

The MPG Wireless pendant needs to be connected to the control, and added to the MachPro software. Use MachPro X15-41-01 Wireless MPG Pendant Setup to perform those steps. The default settings should provide safe operation for your machine. MachPro Jogging Increments & Pendant Info guides you through the settings that can be adjusted to optimize performance on your machine.

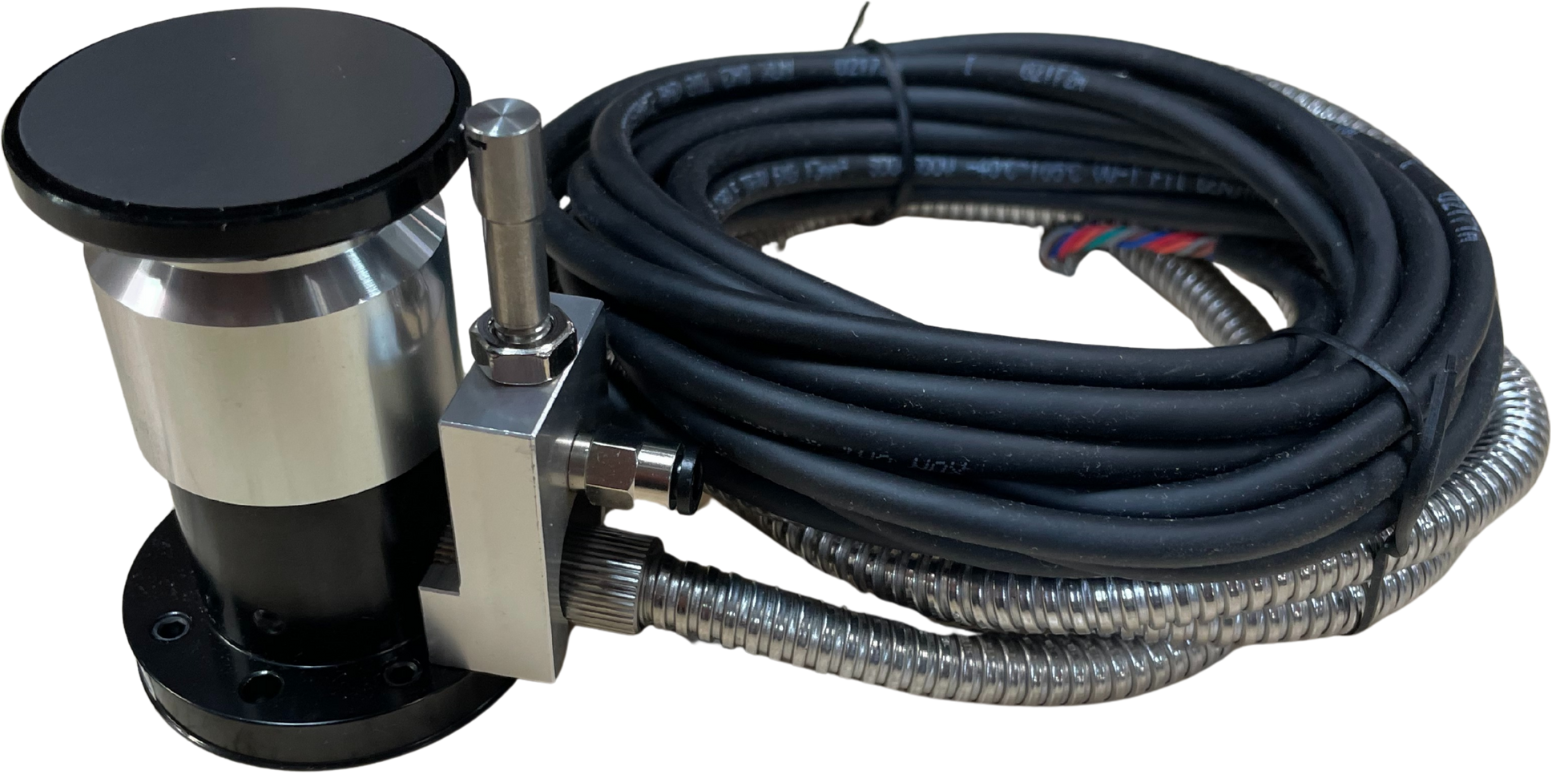

The tool setter should be wired according to these directions:

1. MachPro Tool Setter Wiring and Testing
2. MachPro Input Mapping for Tool Setter and Probe
3. MachPro Tool Setters and Offsets
4. You can further automate the tool setter process by using GoTo positions as part of your sequence.

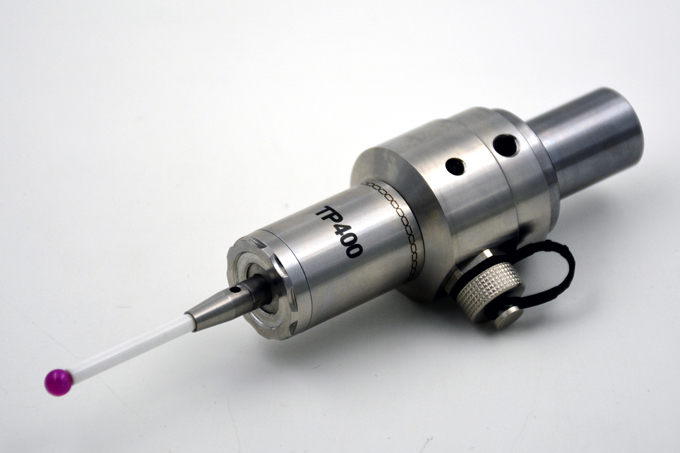

The TP 400 probe should be installed and configured:

1. MachPro TP400 Probe Wiring to M31 Motion Controller
2. MachPro Input Mapping for Tool Setter and Probe
3. MachPro Probing Wizard
4. MachPro Blum Probing Routines
