MachPro Package Installation

MachLabs - Logo & Text.png

Configure Windows Defender Antivirus

To confirm that anti-malware scans do not affect the CNC motion in MachPro, add an exclusion to the the a Mach folder.

  1. From the Windows Start menu, select Settings Settings

    windows setting gear.PNG

  2. At the top of the Settings window is a search box. Search for for exclusions. It will offer Virus & threat protection. Click on that choice.

    search for exclusion.PNG

  3. In Virus & threat protection, scroll down to Exclusions and Add an exclusion - specifically a a Folder

    add exclusion of type folder.PNG

  4. It will open Windows Explorer to your local disk. In the upper left portion of the window, click the New Folder button, and create a folder named Mach Mach

    create new folder.PNG

  5. Add a second exclusion folder using the same process, and call the second folder Mach Backup
  6. Close the Settings window.

Run the Mach Package Installer

Download and run this installer: https://pkgcdn.machmotion.com:8765/static/Mach_Package_Installer.exe.

When you run the installer, you may see these warnings. Select Yes and Run anyway.



Set the Mode to Normal and the Branch to Release. Install the package manager by clicking on the the Install Package Manager button.


Throughout the install process, the progress will be displayed in the bottom panel

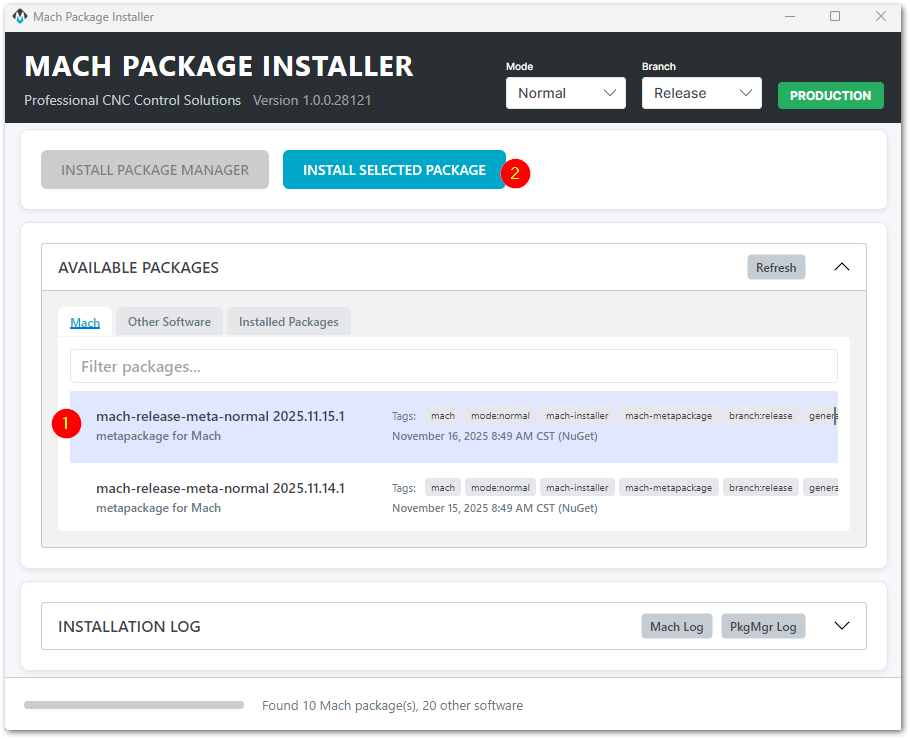

When the package manager has finished installing, the menu will show the software versions that are available for you to install. Unless instructed otherwise, select the release at the top of the list and click the Install Selected Package button to begin.


If this is the first time you've installed MachPro, be patient as it installs all the backend libraries needed.

Once all of the prerequisites packages have been installed, the progress panel will show "Installing mach-(version)" and you will be presented with the MachPro install window.


You will take the defaults throughout the menu screens. Exceptions will be noted below.


Select the Machine Type that you are installing and click Next


Select the M31 type of motion control that you will be using: either EtherCat or Step and Direction, then press Next


Select Select Your Own PC and click click Next


Choose Components: Accept the defaults and click the the Install button. You will have a progress window with the details of your installation.











When the Mach Setup installation process is completed, click the the Close button on the Mach setup window.


Wait for the Installer to show Install Completed at the bottom of the Installer screen.   Then you can close the Mach Package Installer window.


Your next step is to configure the M31 Motion controller.
