2000 Series Swivel Mount Assembly

How to mount the 2K series with a swivel to a stand or bottom arm mount.

It would be mighty handy to have an extra set of hands for this one. It can be done with one person if need be though.

The order of the "swivel sandwich" is very important.

From top down: Control>Keyboard Tray>Strain Relief Plate (zip tie finger UP inside the control)>Swivel>Stand/Bottom Arm Mount.

Mount the Keyboard Tray to the Control.

Mount the Swivel to the Stand/Bottom Arm Mount.

Then Mount the Control with the Keyboard Tray to the Swivel have the Strain Relief Plate just sitting on the Swivel.

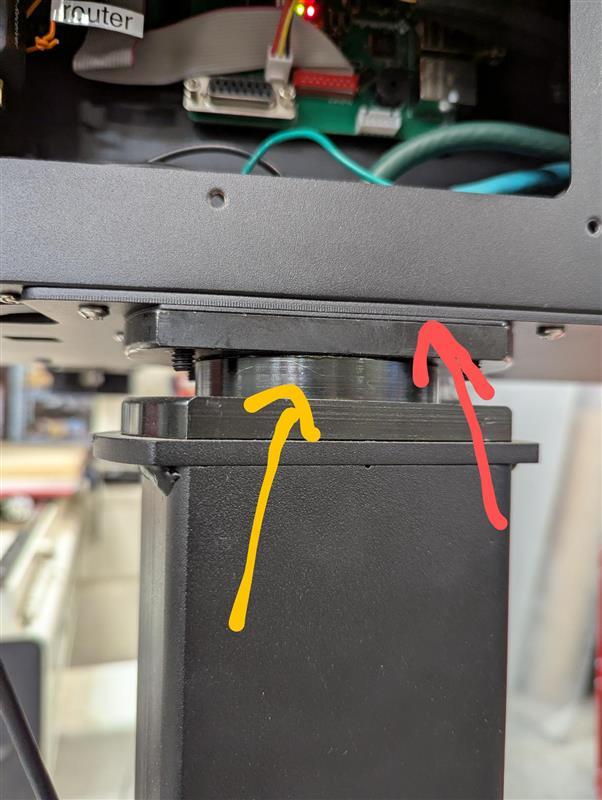

Strain Relief Plate inside the control.
