ESS Motion Controllers

MachLabs - Logo & Text.png

Select the Motion Controller

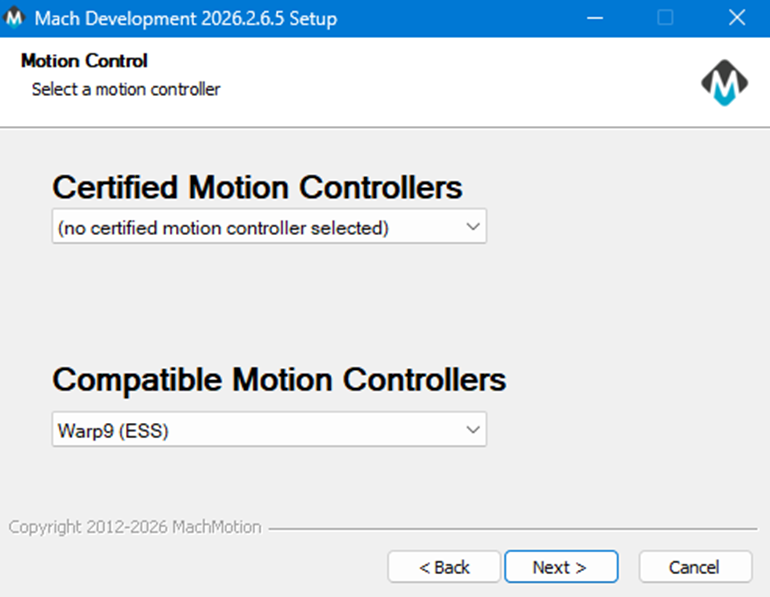

 During the MachPro package installation, you will have selected the motion controller, and the correct Ethernet SmoothStepper (ESS) plugin has now been installed.


 Look for the MachLabs Icon on your Windows desktop. It will have your machine type as a label. Double click to start MachPro.

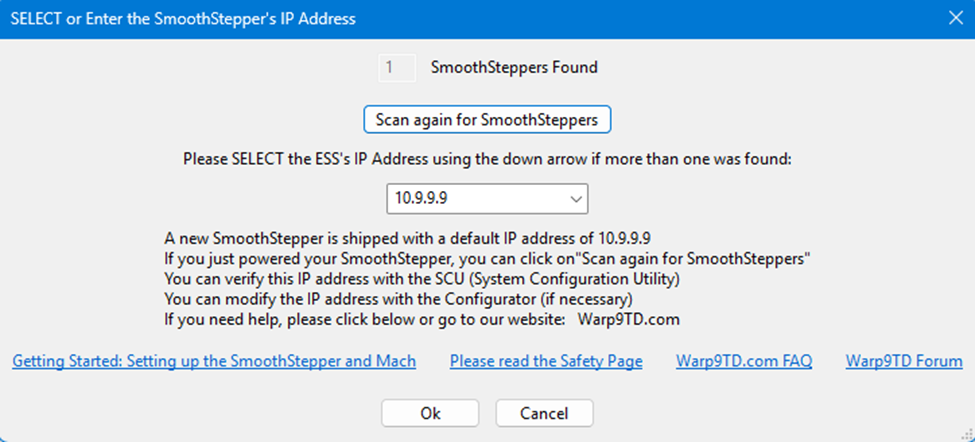

This window will open, but it opens behind MachPro

  • Minimize MachPro to see this window
  • Verify that it found the SmoothStepper
  • Verify that the IP address is 10.9.9.9
  • Click OK to close the window

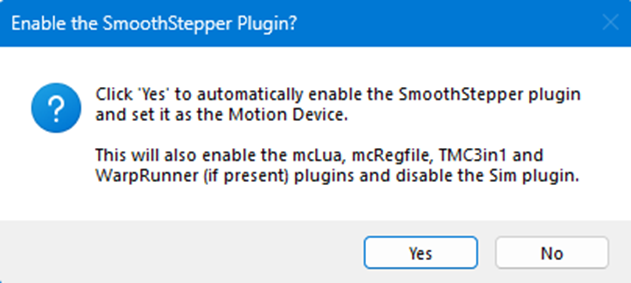

This window will open to confirm that you want to configure MachPro to run with the SmoothStepper motion controller.

Click Yes

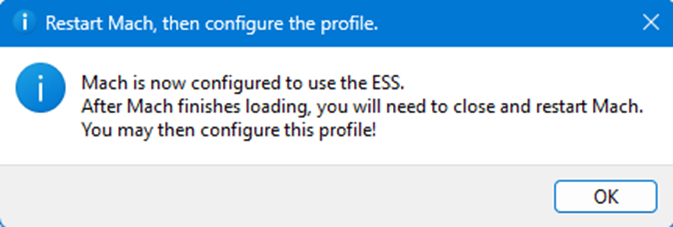

This confirmation window will open.

You will need to close and restart MachPro

Click OK to close the window

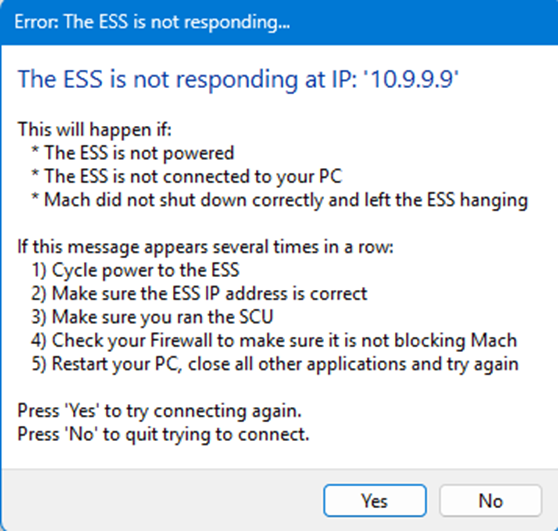

This error report will come up before you restart MachPro.

It is telling the truth:

  • MachPro is not yet able to communicate with the ESS
  • The MachPro computer's network adapter is not yet configured for the ESS.
  • Running the SCU will configure the computer to communicate with the ESS.

Use the SCU to Configure Windows

Note: The Tech9 SCU configures Windows to communicate over a dedicated network. All other network configuration work is outside the scope of this install process. The goal is to have a computer dedicated to the CNC role.

  • If you want to also use that dedicated network for internet access, you will need to reconfigure your network, and we recommend you hire a networking consultant to do that for you.
  • Alternately, you could add a network adapter to the computer - typically a WiFi adapter that plugs into a USB port on your computer.

Warp 9 SCU site

Integrate MachPro with the ESS

You need to integrate MachPro with your PoKeys motion controller. Use this manual to complete those steps: MachPro Compatible Motion Controller Configuration Settings

Reference

Advanced SCU
  • The IP address for the network port on the computer is set to 10.9.9.10 as a static address.
  • Ports in the firewall need to be opened https://documentation.warp9td.com/Software/SCU/04_FAQ.htm
    • UDP 9: The Discard Port (Used for initial presence detection)
    • UDP 67: BOOTP (This is for when the configuration jumper is on).
    • UDP 68: BOOTP (This is for when the configuration jumper is on).
    • UDP 69: TFTP.
    • UDP 4096: Normal runtime communications.
    • UDP 4097: Normal runtime communications with multiple ESSs
    • UDP 5020: Normal runtime communications.
    • UDP 5021: Normal runtime communications.
    • UDP 5022: Normal runtime communications with multiple ESSs.
    • UDP 5023: Normal runtime communications with multiple ESSs.

When these steps are completed, the computer and SmoothStepper motion controller will connect
